Audi MHEV Plus: The Next Generation Hybrid in A5 & Q5

MHEV Plus: The Next Generation of Hybridization at Audi

Audi continues to push the boundaries of automotive innovation with the introduction of MHEV Plus technology in its new A5 and Q5 series. Built on the Premium Platform Combustion (PPC), these vehicles mark the first implementation of 48-volt mild hybrid systems designed to enhance performance, reduce emissions, and improve overall driving efficiency. This advanced system integrates a powertrain generator (PTG), belt alternator starter (BAS), and a lithium iron phosphate battery to optimize the driving experience.

The Evolution of Mild Hybrid Systems

Audi’s MHEV Plus technology enhances the conventional mild hybrid system by introducing a more efficient powertrain generator (PTG), which can be fully coupled or decoupled as needed. The PTG integrates power electronics and an electric motor, enabling partially electric driving. This setup not only reduces fuel consumption but also ensures a smoother ride.

According to Geoffrey Bouquot, Member of the Board of Management for Technical Development at AUDI AG, the MHEV Plus system is a key step in Audi’s broader electrification strategy. “With the new MHEV plus technology, we are driving forward electrification in our new combustion-engine vehicles based on the Premium Platform Combustion, tailored to the needs of our customers,” he said. This technology complements Audi’s growing lineup of all-electric models, plug-in hybrids, and fuel-efficient combustion vehicles.

Key Features of MHEV Plus

The MHEV Plus system in the Audi A5 and Q5 consists of three primary components:

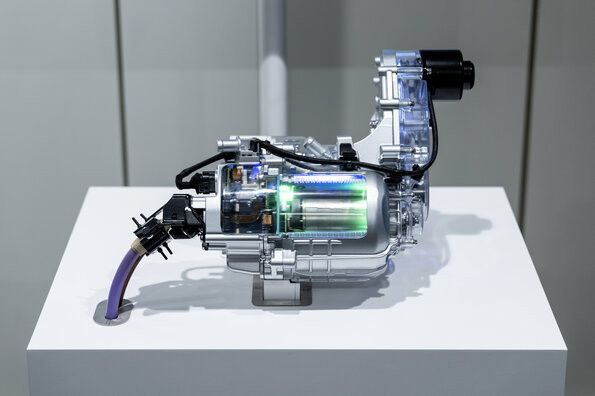

• Powertrain Generator (PTG): A permanently excited synchronous motor (PSM) that delivers up to 18 kW (24 PS) of electrical power and 230 Nm of torque at the transmission output.
• 48-Volt Battery: A lithium iron phosphate battery (LFP) with a capacity of 1.7 kWh, optimized for rapid charge and discharge cycles.
• Belt Alternator Starter (BAS): Ensures smooth engine start-stop functionality and contributes to energy recovery.

These components work together to enable electric boosting, energy recuperation, and partially electric driving, significantly enhancing efficiency and driving dynamics.

Performance and Efficiency Gains

The MHEV Plus system provides notable benefits in fuel efficiency and emissions reduction:

• In the A5 2.0 TDI (150 kW, front/quattro), it saves up to 10 g/km CO2 or 0.38 l/100 km.
• In the A5 3.0 TFSI V6 (270 kW, quattro), up to 17 g/km CO2 or 0.74 l/100 km can be saved.

Additionally, the PTG module allows for purely electric driving at speeds up to 140 km/h, disengaging at higher speeds to maximize efficiency. When decelerating, the PTG can recover up to 25 kW of energy through regenerative braking, reducing reliance on traditional friction brakes.

Enhanced Driving Experience

The MHEV Plus system improves both performance and comfort. The torque boost from the PTG enhances acceleration, making the car more responsive, particularly when starting from a standstill. The system also enables coasting with the engine off, reducing fuel consumption and emissions.

In sport mode (S), the system prioritizes higher battery charge levels, ensuring more power is available for electric boosting and sporty driving dynamics. Meanwhile, in drive mode (D), it focuses on maximizing energy recovery and efficiency.

MHEV Plus: A Step Towards the Future

Audi’s MHEV Plus technology represents a significant step toward more sustainable combustion engines. By combining electrification with traditional powertrains, Audi ensures that drivers experience better fuel efficiency, lower emissions, and enhanced performance.
